Dometent

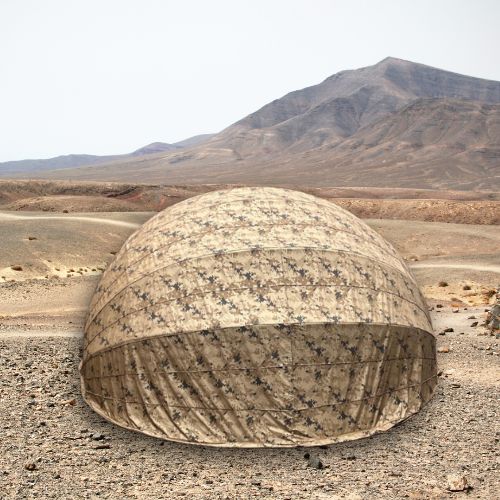

The Fortune-Dome tent is designed to provide special functions and performances for rapid establishment of positions, storages and shelters for military equipment, materials and personnel in battlefields or home front.

Impressive Countermeasures

Big Inner Space

Good Environmental Suitability

Flexibility and Operability

General Introduction
  1. Impressive Countermeasures
    The tent adopted processed tarpaulins and coatings to obviously compete with outside radar and infrared detecting, painted camouflage colors to greatly reduce probability of visible light reconnaissance
  2. Big Inner Space
    The tent shapes an enclosed hemisphere space about 550 cubic meters, which could accommodate radars, armored vehicles, small and medium-sized UAVs, and other mobile equipment or materials.
  3. Good Environmental Suitability
    The tent adopted metal frame and waterproof shell fabric, as well as strong fixing measures to effectively counter the impact of strong wind, heavy rain, sand storm and severe moisture in adverse conditions.
  4. Flexibility and Operability
    The tent could be installed easily in hardened ground, or in any normal ground with prefabricated foundation in one day by 4 experienced personnel. It could be opened and closed by the motor winch in one minute. It also could be improved in air- conditioning, passageways, cable connection of power supply or network, and other affiliated items, etc.

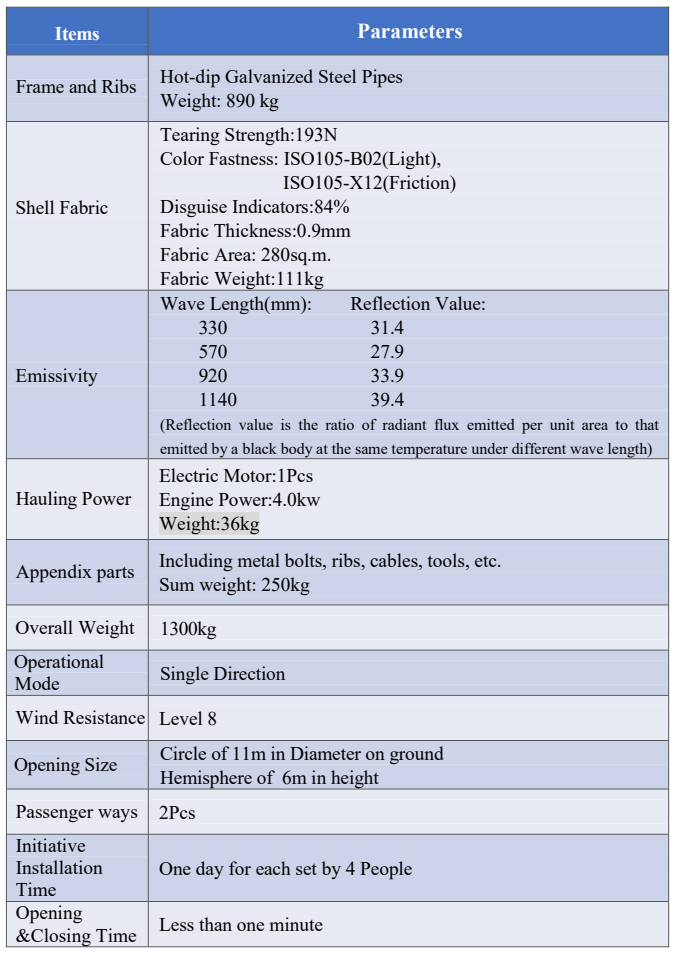

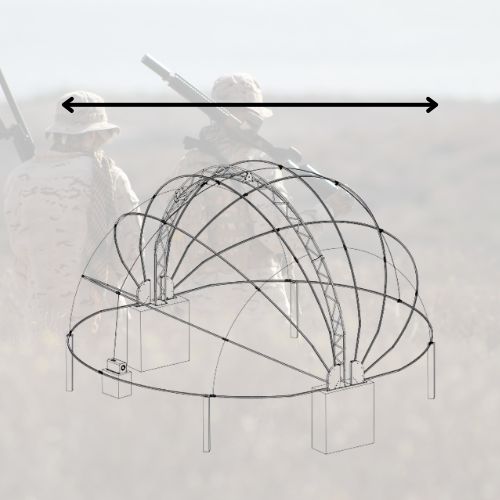

  1. Metal Frame
    The main frame is made of hot-dip galvanized pipe with coating paint, which is resistant to salt mist and corrosion. The base is made of thickened 45# steel plate with multiple-layer-paint and rust prevention treatment. The sturdy frame weighs about 890kg , and could resist strong wind of level 8. The improved version can reach a wind resistance of level 10.
  2. Shell Fabric
    The tent size is 11M(diameter)*6M (height). Its tarpaulin is made of high-strength polyester cloth coated with anti-infrared and wave-absorbing materials. The exterior appearance is painted with digital camouflage of desert color. It could improve concealment and survivability of the equipment, and could work in an environment of -30~70 degrees Celsius.
    The shell fabric of improved version could be painted in different scenes, such as jungle color or customized color.
  3. Hauling Devices
    The tarpaulin and its keels are hauled via SUS316 steel cable by driving motors, and electric control systems etc.
  4. Lighting Devices
    The tent is equipped with 3 sets of 100W explosion-proof lights inside, and could be customized according to EU’s requirements.
  5. Fasten Components
    The tent frame foundation could be fixed on the hardened ground with 45# galvanized bolts.
    For normal ground, prefabricated foundations need to be established accordingly
